Instrument condenser microphone, Alctron T05

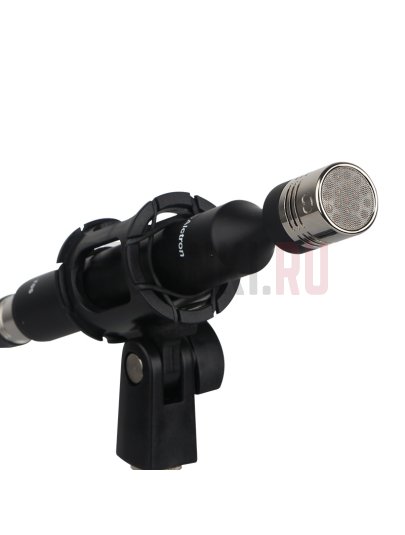

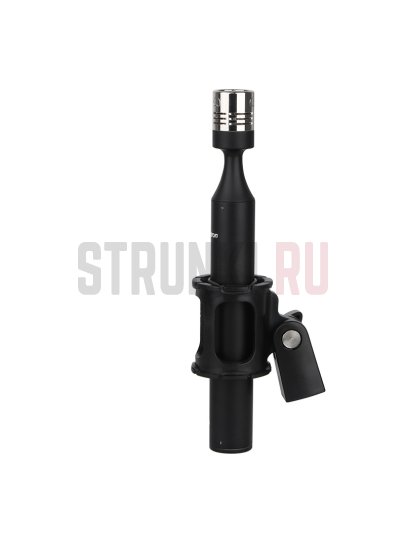

T05 Instrument Condenser Microphone, Alctron

The T05 is an instrument microphone with a 22mm capsule designed to provide an almost neutral, highly detailed sound with transparent high frequencies, optimum presence and natural bass response.

The microphone is particularly well suited for sounding orchestral instruments, percussion, guitar, bass, piano, etc., but can also be used as part of a matched pair. It is also suitable for use in most situations where accurate sound is required, and the high quality capsule replacement makes it ideal for use in broadcast, sound reinforcement and theater, as well as in the recording studio.

The rugged construction, clip and windproofing effectively reduce stand noise, mechanical shocks and external interference.

Features of the T05 microphone
Cardioid pattern improves isolation of the desired sound source.

Low self-noise is ideal for digital recording equipment.

Smooth, extended frequency response with a slight boost in the high frequencies.

Transformerless circuitry virtually eliminates low frequency distortion.

High maximum sound pressure and wide dynamic range.

Ideal for stringed instruments such as violin, cello, acoustic guitar, harp and piano, both in the studio and on stage.
Specifications
Condenser microphone.

Directionality: cardioid (hypercardioid, omnidirectional).

Frequency range: 20Hz-20kHz.

Sensitivity: -39dB±2dB.

Maximum sound pressure level: 120dB.

Output impedance: 200 ohms.

Power supply: 48V phantom power.
